Brand Name : | VICORD |
Model Number : | YCZG-SKZG40 |
Price : | Negotiable |
Payment Terms : | L/C,T/T |
Supply Ability : | 30 sets per month |
Delivery Time : | 60 days |

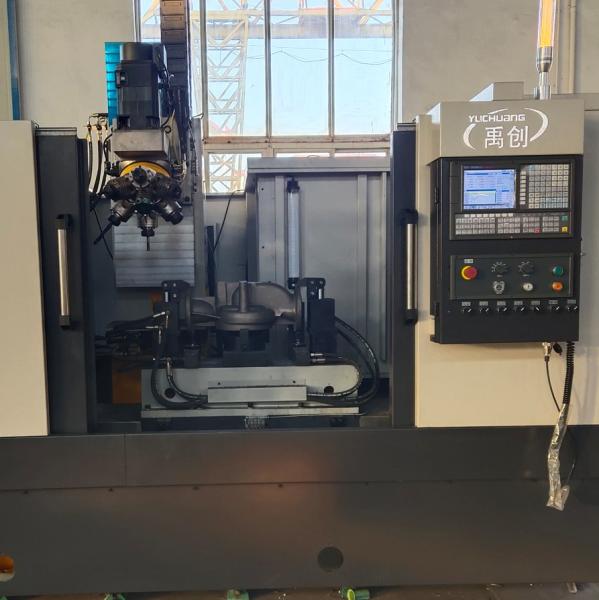

Customized vertical drilling and tapping center
Customized vertical drilling and tapping center is a machine tool that integrates cutting, drilling, tapping and other functions. Compared with traditional vertical machining centers, it occupies a smaller area and has a smaller machining stroke. The equipment adopts advanced CNC system and precise transmission mechanism, with the characteristics of high efficiency, high precision, compact structure and high degree of automation, ensuring the accuracy and consistency of drilling.
Main features
1. Versatility: The vertical drilling and tapping center can complete a variety of machining processes such as drilling, milling, tapping, etc. to meet the machining needs of complex workpieces.
2. High precision: It adopts high-precision servo control system and advanced detection technology to ensure precise control of the machining process and improve machining accuracy.
3. Automation and intelligence: It is equipped with an automatic
tool changing system, which can automatically change the tool
according to the machining program to reduce manual intervention;
it supports advanced programming software, can realize the rapid
programming of complex workpieces, and has fault self-diagnosis
function.
4. High efficiency: The high-speed electric spindle and fast feed
system are used to significantly improve the processing speed and
shorten the processing cycle; at the same time, it has the function
of automatic loading and unloading, which further improves the
level of automation.
Application field
1. Mechanical processing: In the field of mechanical processing, vertical drilling and tapping centers are often used for drilling, tapping and milling of various parts. Through the precision processing of complex parts, vertical drilling and tapping centers can significantly improve the accuracy and consistency of parts, thereby improving the performance and manufacturing level of the overall machinery.
2. Mold manufacturing: In the field of mold manufacturing, vertical drilling and tapping centers can accurately process key parts such as mold cavities and cores, ensure the dimensional accuracy and surface quality of the mold, thereby improving the service life of the mold and product quality.
3. Automobile manufacturing: The high-speed cutting and multi-axis linkage functions of the vertical drilling and tapping center enable it to perform well in complex surface processing, and is suitable for the manufacture of high-precision molds such as automobile cover molds and electronic product shell molds.
Details
Project | Machine tool specifications | YCZG-SKZG40 |
Technical specifications | Z-axis travel(mm) | 700 |
X-axis travel(mm) | 500 | |
Y-axis travel(mm) | 500 | |
Tool connection method | BT40 | |
Processing accuracy | Position accuracy | ≤0.015/3000 |
Surface roughness | 3.2 | |
Spindle drive | Transmission mode | Stepless speed change |
Spindle speed range (r/min) | 0-1000 | |
Spindle motor model | 5.5KW servo | |
CNC control system (optional) | Nanjing Huaxing-servo system Guangzhou CNC-servo system | |
Feeding mode | Servo motor | 7.7N.m |
Machine tool appearance | Fullprotection (Length×width ×height)( mm) | 2760×2200×2430 |
Machine weight (KG) | 3000 |
![]() |
