    Double sided Cast Iron Valve Cnc Turning And Milling Lathe Machine

    Ask Lasest Price
    Brand Name : Vicord
    Model Number : YCIC 600 HT
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C,T/T
    Supply Ability : 30 set per month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Double sided Cast Iron Valve Cnc Turning And Milling Lathe Machine

    A Specialized CNC Solution for Precision Valve Machining

    The valve lathe is a specialized CNC machine tool designed for precision valve manufacturing, offering high accuracy, efficiency, and multi-functional capabilities to meet diverse valve processing requirements. Its advanced technology makes it indispensable across various industries, including oil & gas, chemical processing, power generation, and shipbuilding.

    Key Applications

    1. Valve Manufacturing

    • Ball Valves: Machining valve bodies, seats, and spherical components.

    • Gate Valves: Processing valve bodies, gate plates, and sealing surfaces.

    • Globe Valves: Manufacturing valve bodies, bonnets, and discs.

    • Butterfly Valves: Precision machining of valve bodies, discs, and sealing rings.

    • Check Valves: Producing valve bodies and discs for unidirectional flow control.

    2. Shipbuilding & Marine Applications

    • Marine Valves: Manufacturing critical valves for shipboard systems, including seawater, fuel, and air control valves.

    • Subsea Valves: Producing high-pressure, corrosion-resistant valves for deep-sea exploration and submersible equipment.

    3. Water Treatment & Hydraulic Engineering

    • Water Supply Valves: Fabricating valves for municipal water distribution and wastewater treatment plants.

    • Hydraulic Valves: Machining large-scale valves used in dams, reservoirs, and irrigation networks.

    4. General Industrial Machinery

    • Industrial Process Valves: Producing standard valves for chemical, petrochemical, and power generation systems.

    • Custom Valve Solutions: Manufacturing bespoke or non-standard valves tailored to specific operational demands.

    Typical Machined Components

    • Valve Body: Ensuring dimensional accuracy and pressure integrity.

    • Valve Bonnet: Achieving precise fitment with the valve body.

    • Valve Stem: Delivering high surface finish and mechanical strength for reliable actuation.

    • Sealing Surfaces: Guaranteeing leak-proof performance under extreme conditions.

    • Flanges: Maintaining strict tolerances for secure pipeline integration.

    Conclusion

    As a cornerstone of modern valve production, CNC valve lathes enable manufacturers to achieve superior precision, durability, and efficiency. Their versatility makes them essential for industries requiring high-performance fluid control systems. By leveraging advanced valve lathe technology, businesses can enhance product quality, reduce lead times, and optimize manufacturing workflows.


    Details

    ItemUnitYCIC300HTYCIC300HT-GLQYCIC600HT
    Maximum turning diametermmφ460φ460φ840
    X-axis travel(mm)mm170170270
    Z-axis travel(mm)mm395515520
    Coaxiality(mm)mm≤0.1≤0.1≤0.15
    Parallelism(mm)mm≤0.1≤0.1≤0.15
    Surface roughness-6.36.36.3
    Transmission from(Gearshifting)-4speed change4speed change2 speed change
    Spindle speed ranger/min72–25669–15732–47
    Spindle motor model-YE2–132M–6–5.5KWYE2–132M–6–5.5KWYE2–160L–8–7.5KW
    CNC control system (optional)-Nanjing Huaxing—Stepper systemNanjing Huaxing—Servo systemGuangzhou CNC—stepping system
    Feed form (optional)-Stepper motorStepper motorStepper motor
    Actuating motorNm7.7N.m7.7N.m10N.m
    Fully protected overall dimensions (length × width × height)mm2300X1900X17002500X1900X17003000X2300X2500
    Simple protected overall dimensions (length × width × height)mm2100X1900X17002300X1900X17002700X1800X2300
    Machine weightkg180020004500


    Processed Products

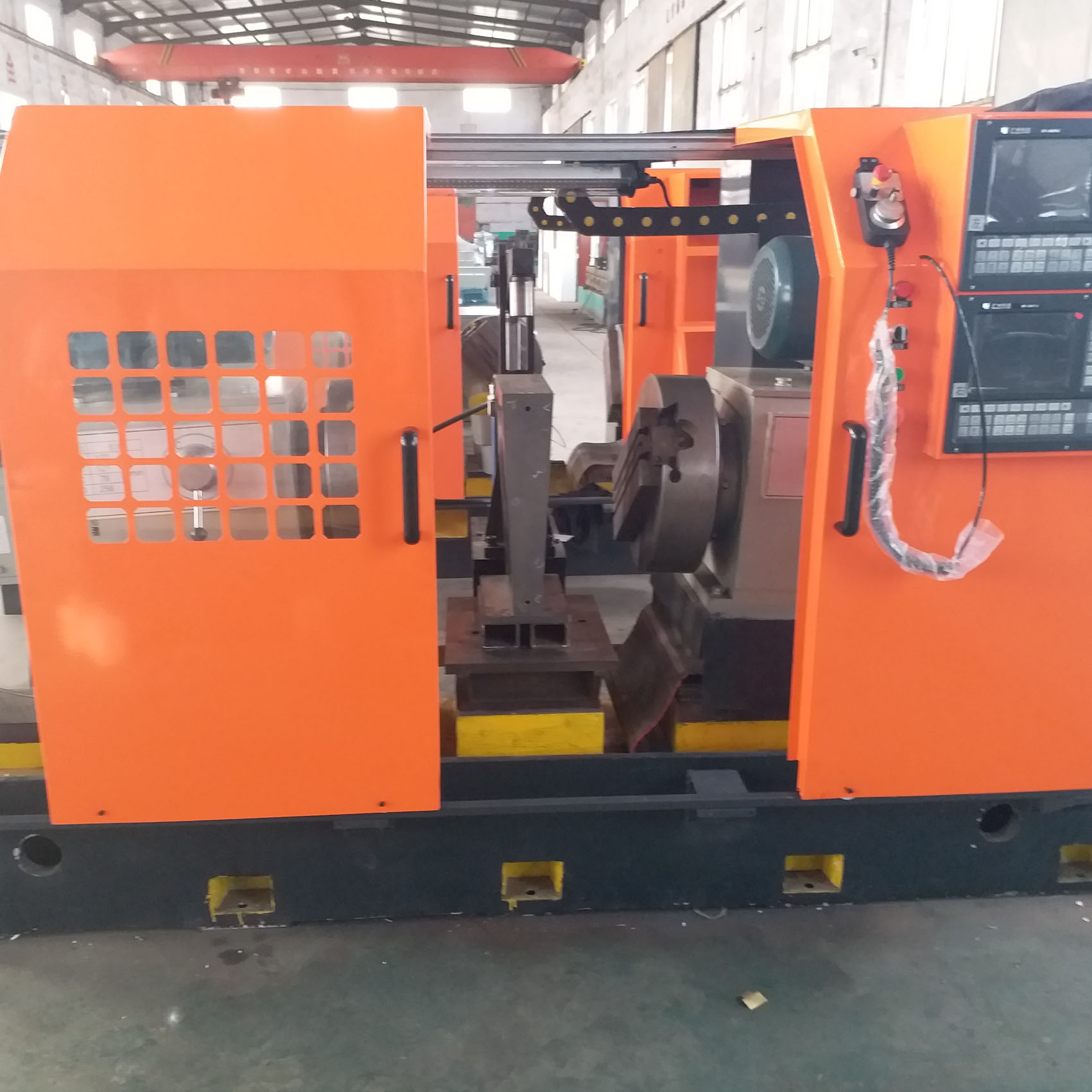

    Machine picture
