Swing Angle Three-sided Cnc Boring Lathe
The main production of the swing angle three-side CNC boring and
lathe is YCIIIC300HT, which can process the end face, outer circle,
waterline, inner hole, chamfering and other processes of the
workpiece. It can realize automation, suitable precision,
multi-variety and large-scale production. It is controlled by the
CNC system, which is easy and fast to operate. It can process three
surfaces at the same time with high speed, improve processing
efficiency, save labor and reduce costs.
Main features
The machine tool is controlled by a numerical control system, which
is easy and fast to operate. It can process three surfaces
simultaneously at a fast speed, improve processing efficiency, save
labor, and reduce costs.
1. High processing efficiency, the machine tool can complete the
machining of three flanges, planes or holes at the same time by
using three power heads to work simultaneously during the machining
process.
2. Reducing manual labor, one dedicated machine is equivalent to
the efficiency of three ordinary devices, and one person can
operate 2-3 dedicated machines.
3. The uniformity of machining dimensions is high, and this special
machine is completely controlled by a CNC system. With only one
tool alignment, the same model of work can be repeatedly machined,
thereby improving the uniformity of dimensions.
4. Easy to operate, this special machine is controlled by a
numerical control system, and those with numerical control
operation experience can learn it immediately.
Main components
The three-sided CNC boring and lathe with swing angle is mainly
composed of bed, power head, CNC feed slide, CNC lateral feed
cutter disc, hydraulic tooling, and is equipped with independent
power distribution cabinet, hydraulic station, centralized
lubrication device, cooling automatic chip removal device,
multi-functional CNC system, motor, and machine tool protection
system.
Application
The machine tool is suitable for various flange fittings and
elbows: This machine tool can process various fittings such as
straight tees, straight pipes, 90 elbows, 11.25 ° elbows, 22.5 °
elbows, 30 ° elbows, 45 ° elbows, etc. by adjusting the sliding
table angle. It has high processing efficiency, reduces labor, high
uniformity of processing dimensions, and is easy to operate.
Specifitions
| Project | Machine tool specifications | YC lll C300HT |
| Technical specifications | block type(mm) | φ460 |
| Maximum processing length(mm) | 800 |
| Minimum processing length度(mm) | 200 |
| Maximum machining size from the middle flange to the center(mm) | 400 |
| Minimum machining size from the middle flange to the center(mm) | 150 |
| Satisfy the processing angle | 11.25,22.5,30,45,90,180 |
| X-axis travel (m m) | 170 |
| Z-axis travel (m m) | 450 |
| Processing accuracy | Coaxiality(mm) | ≤0.1 |
| Parallelism(mm) | ≤0.1 |
| verticality(mm) | ≤0.1 |
| Surface roughness | 6.3 |
| Main shaft drive | Transmission mode(gear shifting) | 4-speed transmission |
| Spindle speed range(r/min) | 72-256 |
| Spindle motor model | YE2-132M-6-5.5KW |
| CNC control system (optional) | Nanjing Huaxing - Stepper System Guangzhou CNC - Stepper System | Nanjing Huaxing - Servo System Guangzhou CNC - Servo System |
| Feed form(optional) | Stepper motor | 24N.m |
| servo motor | 7.7N.m |
| Machine tool appearance | Machine tool dimensions (length X width X height mm) | 3950×2750×1800 |
| Machine tool dimensions (length X width X height mm) | 4150×3000×1800 |
| Machine weight (kg) | 5800 |

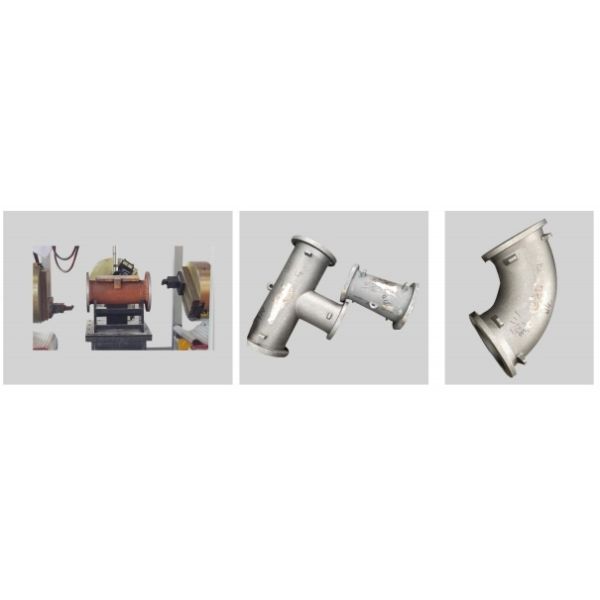

Processed products
