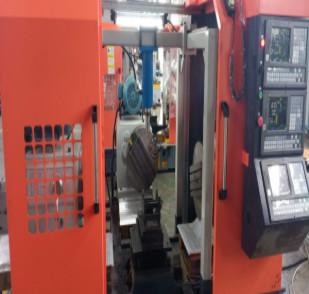

Casting valve three-sided CNC boring and milling machine
Three-sided CNC Boring Lathe
Three-sided CNC boring lathe is a CNC machine tool specially used for multi-sided boring processing. Boring is a precision machining process for machining holes and inner diameters, usually used to machine high-precision holes or inner diameter surfaces. Three-sided CNC boring lathe is controlled by a CNC system and can complete multi-sided boring tasks efficiently and accurately. It is suitable for production environments that require high precision and high efficiency.
Key Features
>1. >Three-side boring: It can process three surfaces of the workpiece at the same time, and is suitable for parts requiring high precision and multi-sided finishing.
>2. >High efficiency: The CNC system is used to realize automated processing to improve production efficiency.
>3. >High precision: Adopt advanced CNC system and precision mechanical structure to ensure processing accuracy.
Application
>1. >Casting valves: various valves, such as gate valves, butterfly valves, check valves, etc.
>2. >Casting water pumps: water pumps of various diameters and shapes.
>3. >Fire protection industry: fire hydrants and other water supply and drainage facilities.
>4. >Pipe fittings industry: various flange pipe fittings.
Details
Item | Unit | YCⅢC300HT | YCⅢC400HT | YCⅢC600HT | YCⅢC800HT |
Maximum turning diameter | mm | Φ460 | Φ580 | Φ840 | Φ1025 |
Maximum processing length | mm | 600 | 800 | 1000 | 1100 |
Minimum processing length | mm | 200 | 300 | 300 | 400 |
Maximum processing size from intermediate flange to center | mm | 400 | 600 | 700 | 900 |
Minimum processing size from intermediate flange to center | mm | 150 | 200 | 200 | 250 |
X-axis travel | mm | 170 | 270 | 450 | 570 |
Z-axis travel | mm | 280 | 395 | 450 | 450 |
Coaxiality | mm | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.2 |
Parallelism | mm | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.2 |
Verticality | mm | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.2 |
Surface roughness | 6.3 | 6.3 | 6.3 | 6.3 | |
Transmission type (gear speed change) | 4-speed gearshift | 3-speed gearshift | 2-speed gearshift | 3-speed gearshift | |
Spindle speed range | r/min | 72-256 | 69-157 | 32-47 | 43-87 |
Spindle motor model | YE2-132M-6-5.5KW | YE2-132M-6-5.5KW | YE2-160L-8-7.5KW | YE2-180L-8-11KW | |
CNC control system (optional) | Nanjing-huaxing Stepping system Guangzhou-shukong Stepping system Nanjing-huaxing Servo System Guangzhou-shukong Servo System | ||||
Stepper Motor | N.m | 24 | 24 | 35 | 50 |
Servo Motor | N.m | 7.7 | 7.7 | 10 | 15 |
Full protection overall size (Length×width ×height) | mm | 3800×2700×1700 | 4500×3300×2200 | 5000×3600×2200 | 5400×3800×2500 |
Simple protection size (Length×width ×height) | mm | 3600×2600×1700 | 4350×3200×2200 | 4800×3500×2200 | 5200×3800×2500 |
Machine weight | Kg | 4500 | 6500 | 8000 | 11000 |
