    Single Sided Multifunction CNC Boring Machine Efficiency Cnc Milling Turning

    Ask Lasest Price
    Brand Name : Vicord
    Model Number : YCIC300HT-GLQ
    Certification : CE
    Payment Terms : L/C,T/T
    Supply Ability : 500 units/year
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Single Sided Multifunction CNC Boring Machine Efficiency Cnc Milling Turning

    Efficiency Single-Sided Multifunction CNC Boring Machine


    Application


    The machine tool is suitable for processing various valve bodies: The machine tool can process the outer circle of the valve body, the key end faces of the valve body, the inner hole, and the plane. The machine tool can process any valve body, where the three flange surfaces of this valve body can form a 90-degree angle, or it can process two flange surfaces that are on the same straight line.


    Advantages


    High processing efficiency: The machine tool can complete the processing of flange faces, end faces, and water lines within 1-3 minutes. The short processing time is due to the machine tool's use of a power head working simultaneously.


    Reduce manual labor: one person can operate two lathes simultaneously or operate one lathe and one drilling machine at the same time.


    Easy to operate: The machine tool is controlled by a numerical control system, and those with experience in numerical control operation can learn it in one go.


    Details

    ProjectMachine tool specificationYCIC300HTYCIC300HT-GLQYCIC600HT
    Technical
    specifications
    Maximum turning length(mm)φ480φ480φ850
    X-axis travel(mm)180180280
    Z-axis travel(mm)400520530
    Machining precisionCoaxiality(mm)≤0.15≤0.15≤0.2
    Parallelism(mm)≤0.1≤0.1≤0.15
    Surface roughness6.36.36.3
    Spondle driveTransmission from (Gearshifting)Fourth speed changeFourth speed changeSecond speed change
    Spindle motor range(r/min)72-25672-25632-47
    Spindle motor modelYE2-132M-6-5.5KWYE2-132M-6-5.5KWYE2-160L-8-7.5KW
    Numerical control system(optional)Nanjing Huaxing--Step System Nanjing Huaxing--Servo System
    GuangZhou cnc--Stepping GuangZhou cnc--Servo System
    Feed form(optional)Stepmptor24 N.m24 N.m35 N.m
    Actuating motor7.7 N.m7.7 N.m10 N.m
    Machine AppearanceFull protectionOverall dimension of machine tool
    (length x width x height) (mm)
    2300 x 1900 x 17002500 x 1900 x 17003000 x 2300 x 2500
    Simple protectionOverall dimension of machine tool
    (length x width x height) (mm)
    2100 x 1900 x 17002300 x 1900 x 17002700 x 1800 x 2300
    Machine tool weight(kg)180020004500

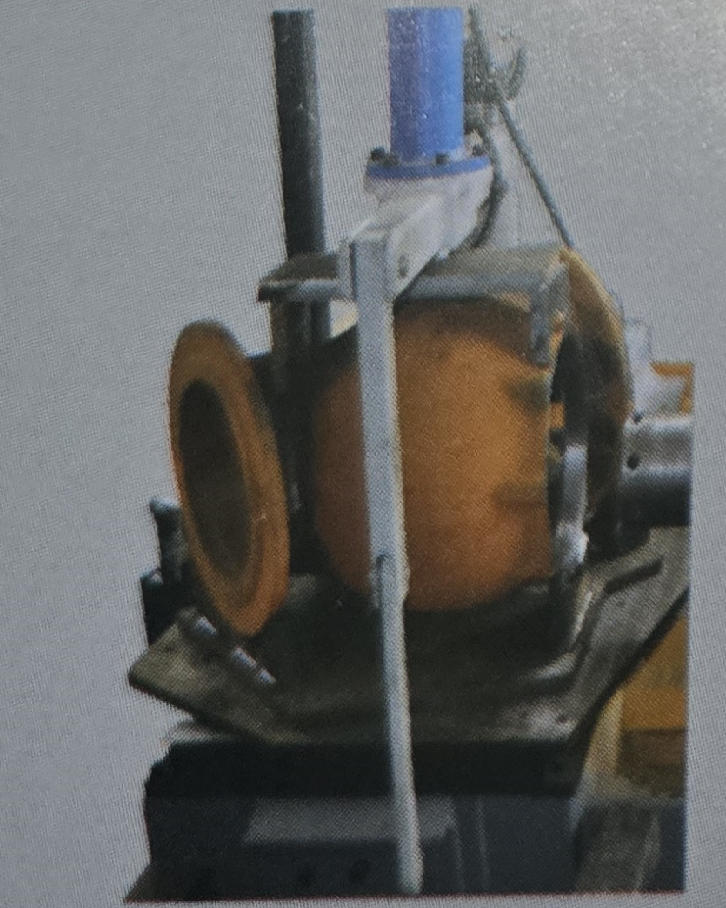

    Process Product
