Drilling and tapping integrated machine
The integrated drilling and tapping machine can complete the
simultaneous processing of multiple threaded holes on the same
plane, with high processing efficiency, reduced labor, high
uniformity of processing dimensions and easy operation.
Main features
1. High processing efficiency: During the processing, the drilling
and tapping machine uses the No. 1 power head to feed
longitudinally to complete the drilling process of the thread
bottom hole; the workpiece is moved from the horizontal workbench
to the workstation, and the No. 2 power head feeds longitudinally
to complete the thread tapping process. The time required is 1-2
minutes.
2. Reduce labor: Traditional tapping requires two processes, namely
drilling the thread bottom hole and tapping, and it is necessary to
use the mold to process one hole at a time, which wastes time and
manpower. The drilling and tapping machine can complete the
drilling and tapping of multiple holes in one clamping. The work
efficiency is very high.
3. High uniformity of processing size: After one adjustment is
completed, you only need to clamp the workpiece to cycle the
drilling and tapping work.
4. Easy to operate: This machine tool is easy to operate and anyone
with or without experience can learn it.
Main components
The main engine of the valve CNC machine tool is the main body of
the valve CNC lathe, including the machine body, column, spindle,
feed mechanism and other mechanical parts. It is a mechanical part
used to complete various cutting processes. The CNC device is the
core of the valve CNC machine tool, which is used to input digital
part programs, store input information, transform data, interpolate
operations, and realize various control functions.
Application
The drilling and tapping machine is suitable for various valves and
pipe fittings: the drilling and tapping machine uses a cross
coupling to drive the spline shaft, the drill rod position can be
adjusted arbitrarily, and the drilling and tapping machine can
process products with multiple threaded holes on the same plane,
such as the valve center.
Specifitions
Project | Machine tool specifications | YCZG200HT | YCZG300HT |
Technical specifications | Maximum drilling center distance ( mm ) | φ230 | φ400 |
Maximum machining size from middle flange to center ( mm ) | 300 | 400 | |
Minimum machining size from middle flange to center ( mm ) | 150 | 150 | |
Power box travel ( mm ) | 180 | 320 | |
Mobile workbench travel ( mm ) | 460 | 460 | |
Machining accuracy | Drill bit connection method | ER clamp | ER clamp |
Positional accuracy ( mm ) | ≤0.2 | ≤0.2 | |
Main shaft drive | Surface roughness | 12.5 | 12.5 |
Range of spindle speed(r/min) | 400/100 | 300/100 | |
Spindle motor model | YE2-132M-6-2.2KW | YE2-132M-6-3KW | |
Control system | PLC | ||
Feed form | Hydraulic transmission | ||
Machine tool appearance | Machine tool external dimensions | 2300X1700X1700 | 2500X1900X1800 |
Machine weight (kg) | 1100 | 1800 |

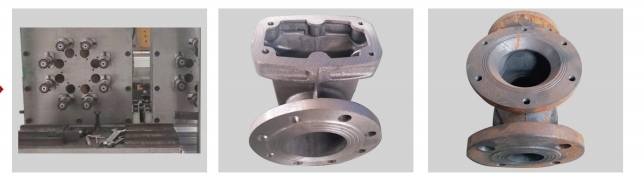

Processed products
![]() |
