    Full Protection Valve Flange Tee CNC Boring Milling Machine Lathe

    Ask Lasest Price
    Brand Name : Vicord
    Model Number : YC III C300/400/600/800HT
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C,T/T
    Supply Ability : 30 set per month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Full Protection Valve Flange Tee CNC Boring Milling Machine Lathe

    Full Protection Valve Flange Tee CNC Boring Milling Machine Lathe


    CNC three-side boring and milling machine is a high-precision and high-efficiency CNC machine tool, mainly used for processing complex workpieces, such as boxes, frames, molds, valves, automobiles, rear axles, flange tees, etc. Its core feature is that it can perform boring and milling on three sides of the workpiece (usually the front, side, and top sides) without re-clamping, which significantly improves the processing efficiency and precision.


    Main features:

    Three-side processing capability: The processing of three sides can be completed in one clamping, reducing clamping errors. Reduce labor intensity, low cost and high efficiency

    High precision: The advanced CNC system is adopted to ensure processing accuracy and surface quality.

    Versatility: It integrates boring, milling and other functions to meet the processing needs of multi-sided workpieces.

    Widely used in energy, fluid, automobile, fire protection and other fields.


    Application :

    Energy equipment: such as wind power gearboxes and turbine components.

    Automobile industry: such as automobile rear axles and reducers.

    Fluid industry: such as valves, flange pipe fittings, fire hydrants and other structural parts.
    Mold manufacturing: such as large injection molds and die-casting molds.


    CNC three-side boring and milling machines are indispensable high-end equipment in modern manufacturing, especially suitable for high-precision and high-efficiency processing of complex workpieces.


    Payment terms

    40% advance Payment, 60% after inspection before shipping by TT


    Details

    ItemUnitYC III C300HTYC III C400HTYC III C600HTYC III C800HT
    Maximum turning diametermmφ460φ580φ840φ1025
    Maximum processing lengthmm60080010001100
    Minimum processing lengthmm200300300400
    Single-way spindle assembly side length (maximum)mm400600700900
    Single-way spindle assembly side length (minimum)mm150200200250
    X-axis travelmm170270450570
    Z-axis travelmm280395450450
    Coaxialitymm≤0.1≤0.1≤0.15≤0.2
    Parallelismmm≤0.1≤0.1≤0.15≤0.2
    Verticalitymm≤0.1≤0.1≤0.15≤0.2
    Surface roughness-6.36.36.36.3
    Spindle transmission form-4-axis variable speed9-axis variable speed2-axis speed change3-axis variable speed
    Spindle speed ranger/min72–25669–15732–4743–87
    Spindle motor model-YE2–132M–6–5.5KWYE2–132M–6–5.5KWYE2–160L–8–7.5KWYE2–180L–8–11KW
    CNC control system (optional)-Nanjing Huaxing—Stepper systemNanjing Huaxing—Servo systemGuangzhou CNC—stepping systemGuangzhou CNC—Servo system
    Feed form (optional)-Stepper motorStepper motorStepper motorStepper motor
    Servo motorNm7.7N.m7.7N.m10N.m15N.m
    Fully protected overall dimensions (length × width × height)mm3800×2700×17004500×3300×22005000×3600×22005400×3900×2500
    Simple protected overall dimensions (length × width × height)mm3500×2600×17004350×3200×22004800×3500×22005200×3800×2500
    Machine weightkg45006500800011000

    Processed Products

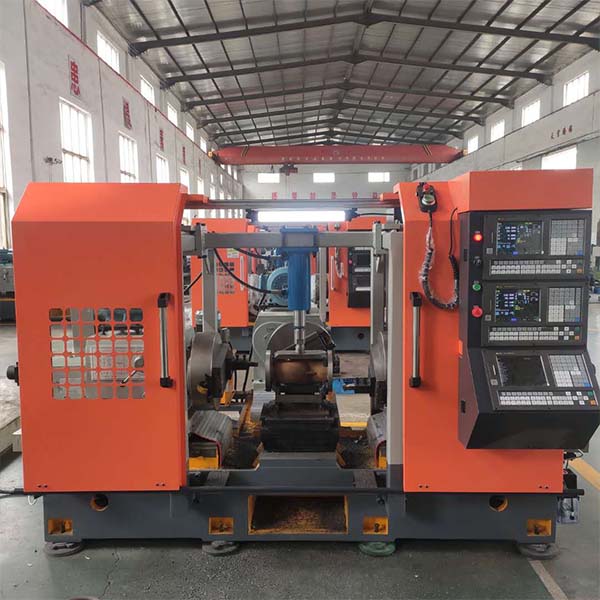

    Machine picture
