High Precision Rotary Head Vertical Drilling And Milling Machine
The CNC vertical rotary cutter head milling and drilling machine is a CNC machine tool that integrates multiple functions such as milling, drilling, and tapping. Its core feature is that it is equipped with a rotatable cutter head, which can achieve multi-angle processing.
1. Structure
Vertical design: The spindle is arranged vertically and the
workpiece is fixed on the workbench.
Rotating cutter head: The cutter head can rotate at multiple angles
and supports the processing of complex geometric shapes.
2. CNC system
CNC control: Automatic processing is achieved through computer
programming, supporting complex paths and high-precision
operations.
Multi-axis control: Usually has three axes (X, Y, Z) or more axes,
and some models also have rotating axes (such as A axis and C axis)
to meet complex processing needs.
3. Function
Milling: Supports multiple milling operations such as planes,
contours, and slots.
Drilling: Drilling of various diameters and depths can be
performed.
Tapping: Some models have automatic tapping function.
Multi-angle processing: The rotating cutter head supports
multi-angle processing, reducing the number of times the workpiece
is re-clamped.
4. Application
Mold manufacturing: used for processing high-precision molds.
Aerospace: suitable for processing complex parts.
Automobile manufacturing: used for key components such as engines
and gearboxes.
General machinery: suitable for processing various mechanical
parts.
5. Advantages
High efficiency: multiple processes can be completed in one
clamping, reducing auxiliary time.
High precision: CNC system ensures processing accuracy and
consistency.
Flexibility: adapt to different processing needs through
programming.
Multi-angle processing: Rotary cutter head supports multi-angle
processing, reducing the number of times the workpiece is
re-clamped.
The CNC vertical rotary cutter head milling and drilling machine integrates milling, drilling, tapping and other functions, has multi-angle processing capabilities, is suitable for high-precision and high-efficiency complex parts processing, and is widely used in molds, aerospace, automobiles and other fields.
Project | Machine tool specifications | YCZG-SKZG40 |
Technical specifications | Z-axis travel(mm) | 700 |
X-axis travel(mm) | 500 | |
Y-axis travel(mm) | 500 | |
Tool connection method | BT40 | |
Processing accuracy | Position accuracy | ≤0.015/3000 |
Surface roughness | 3.2 | |
Spindle drive | Transmission mode | Stepless speed change |
Spindle speed range (r/min) | 0-1000 | |
Spindle motor model | 5.5KW servo | |
CNC control system (optional) | Nanjing Huaxing-servo system Guangzhou CNC-servo system | |
Feeding mode | Servo motor | 7.7N.m |
Machine tool appearance | Fullprotection (Length×width ×height)( mm) | 2760×2200×2430 |
Machine weight (KG) | 3000 |

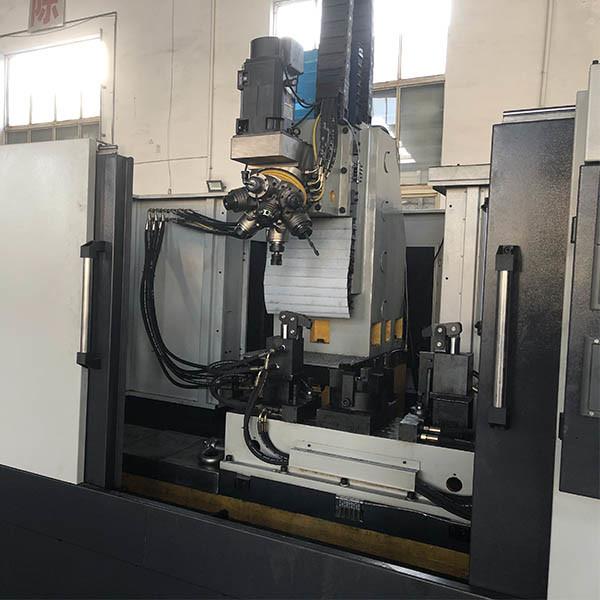

Machine picture
![]() |
