    Taiqun Gantry Processing Center 11KW High Speed And High Rigidity

    Ask Lasest Price
    Brand Name : Vicord
    Model Number : YCLMZ-5000
    Payment Terms : L/C,T/T
    Supply Ability : 500 units/year
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Taiqun Gantry Processing Center 11KW High Speed And High Rigidity

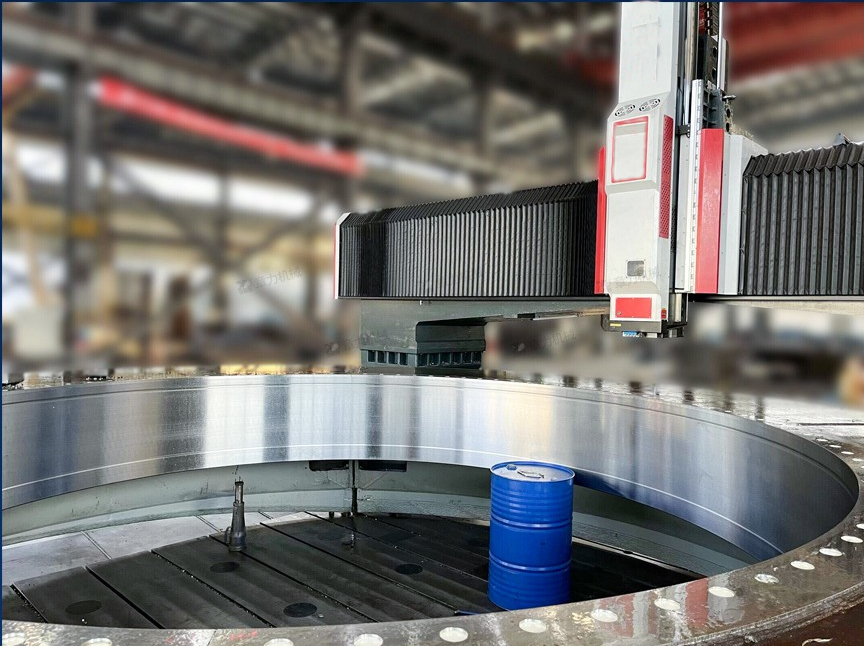

    Taiqun Gantry Processing Center


    The Taiqun gantry machining center has high speed and high rigidity, integrating drilling, tapping, milling and other processing. The X, Y and Z axis screws all use precision ball screws, and the three-axis guides use precision linear guides.


    Main features


    1. High rigidity, efficient processing, and high reliability;

    2. Simple operation and higher productivity;

    3. Improve the rigidity of component structure and drive system, and achieve high dynamic response of each axis;

    4. Ensure that it can withstand higher loads;

    5. Ensure accurate positioning during rapid movement.


    Main components


    Taiqun Gantry Processing Center consists of a workbench, a vertical sliding ram boring and milling head, a gantry longitudinal movement (X axis), a vertical sliding ram feeding movement (Z axis), and an electrical system.


    Application


    The Taiqun gantry machining center has high speed and high rigidity, integrating drilling, tapping, milling and other processing. It is widely used in the processing of small plate parts, disc parts, and shells in non-3C industries, automotive parts, small mold processing, medical equipment and other industries.


    Specifications


    ProjectMachine tool specificationsYCLMZ-5000
    Technical specificationsPrincipal axisB150
    Maximum drilling diameterφ70 U drill
    Distance from spindle end face to worktableThe height of the workbench is determined by its placement
    X-axis travel5000mm
    Y-axis travel5000mm
    Z-axis travel600mm
    T-groove spacing300mm
    Servo spindle11KW
    Processing accuracyMachine tool repeat positioning accuracy±0.02
    Processing positional accuracy±0.05
    Main shaft driveTransmission formSynchronous belt
    Spindle speed range (r/min)300--6000
    CNC control systemKane Emperor K1000MFIi
    Feed formServo motor15N.m/10N.m/7.7N.S
    Machine tool appearanceMachine tool dimensions (length X width X height mm)4300×3500×2700
    Machine weight13 tons (excluding workbench)

    Processed products
