    Power Tower Type Horizontal Machining Center 1500r/min 11KW

    Ask Lasest Price
    Brand Name : Vicord
    Model Number : YCWJ400
    Certification : CE
    Payment Terms : L/C,T/T
    Supply Ability : 500 units/year
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Power Tower Type Horizontal Machining Center 1500r/min 11KW

    Power Tower Type Horizontal Machining Center


    Main features


    The machine tool adopts an electromechanical integration design, featuring strong rigidity and wear resistance of the ball screw linear guide. The slide table feed is controlled by numerical control, using ball screws, and it possesses characteristics such as aesthetic appearance, rational structure, easy operation, high machining accuracy, and excellent uniformity in machining dimensions.


    Main component

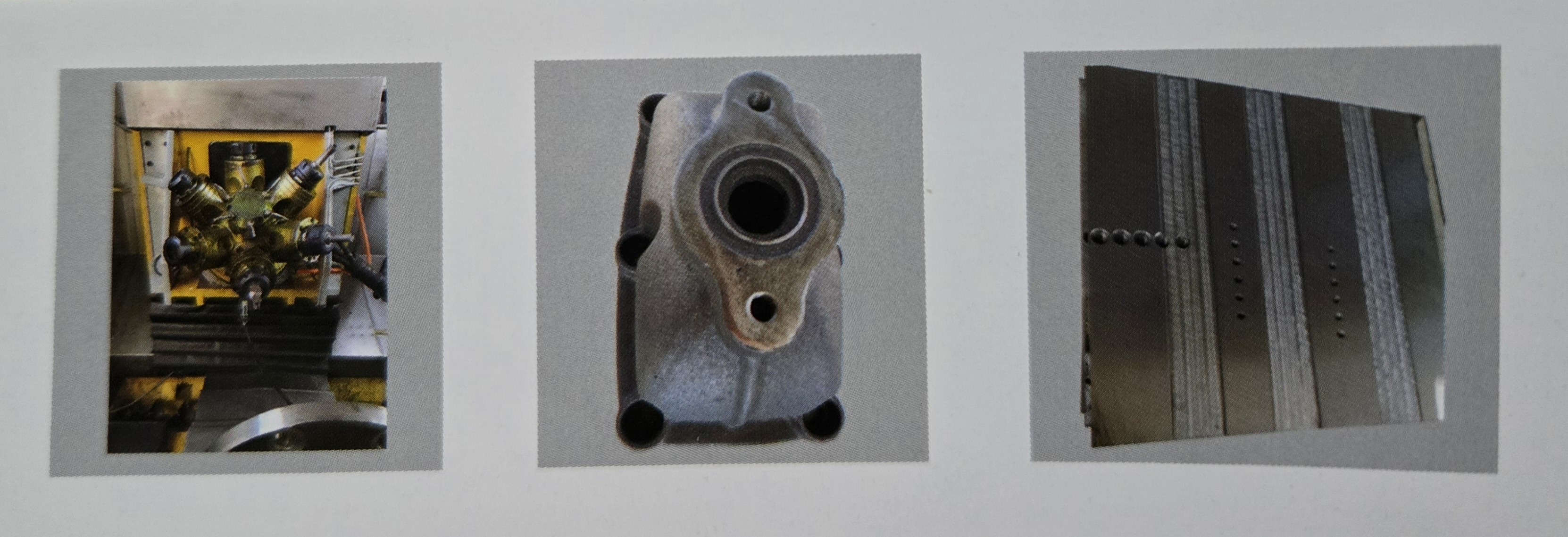

    The YCWJ series turret machining center mainly consists of horizontal slides, vertical slides, turret heads, rotary tables, fixtures, and other components. Through numerical control, it can achieve multiple machining processes such as milling end faces, drilling, back-drilling countersinking, and tapping in a single clamping.


    Specifitions


    ProjectMachine tool specificationYCWJ400
    Technical
    specifications
    Worktable size(length x width)450 x 450
    Turntable size320 x 320
    Spindle number of turret head6
    Connection mode of turret head spindle and cutterER40 circlip
    X-axis stroke500mm
    Z-axis stroke450mm
    Y-axis stroke350mm
    Maximum drilling diameterφ25
    Maximum tapping diameterφ20
    Feed motorActuating motor
    Lubrication form of Machine toolVolumetric automatic lubrication
    Main motorTotal power of Machine tool11KW
    Rated speed1500r/min
    Rated power4KW
    Feed motorX-axis motor130SY-M-10
    Rated speed1500r/min
    Rated power1.6KW
    Rated output torque10N.m
    Y-axis motor130SY-M-7.7
    Rated speed2000r/min
    Rated power1.6KW
    Rated output torque7.7N.m
    Motor model130SY-M-20
    Rated speed1500r/min
    Rated power3KW
    Rated output torque20N.m
    Machine AppearanceOverall dimension of machine tool
    (length x width x height) (mm)
    2000 x 1600 x 1800
    Machine tool weight(kg)2500
