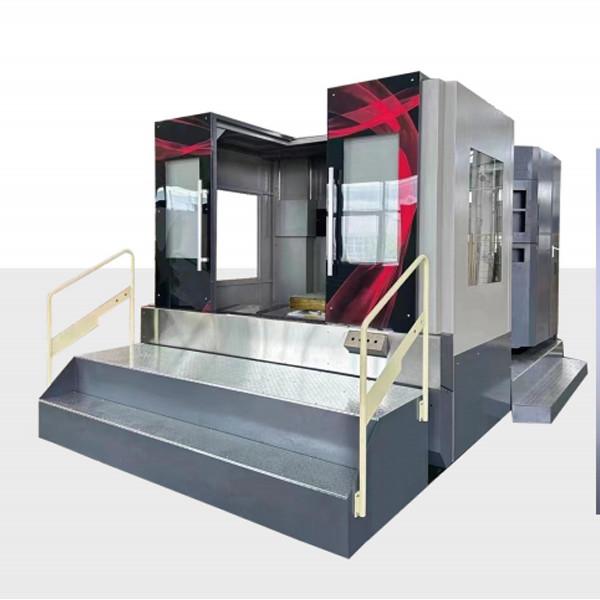

Horizontal Machining Center
Introduction to horizontal machining center
horizontal machining center is a kind of equipment developed
according to industrial products, which ismainly suitable for
multi-process machining of parts such as turning, driling, boring,
miling and tapping. it has the characteristics ofcompleting
multi-process machining of workpieces by clamping at one time,
greatly reducing the reverse order problem of productionprocess
during machining and improving machining efficiency and accuracy.
Machine tools are mainly composed of X-axis,
Y-axisZ-axis,B-axis,U-axis and BT50 spindle
Main features
Horizontal arrangement of the spindle: convenient for processing
large or heavy workpieces.
Multi-faceted processing capability: usually equipped with a rotary
table, which supports multi-faceted processing in one clamping.
High precision: precision guide rails and servo systems are used to
ensure processing accuracy.
Automation: supports automatic tool change, automatic measurement
and other functions to improve efficiency.
Rigid structure: the bed is sturdy and suitable for heavy cutting
and high-load processing.
Main components
Bed: provides support and stability.
Spindle: responsible for cutting, arranged horizontally.
Workbench: can be rotated or moved to fix the workpiece.
Tool magazine: stores tools and supports automatic tool change.
Control system: CNC system, responsible for programming and
controlling the processing process.
Advantages
Efficient processing: multi-faceted processing is completed in one
clamping, reducing the number of clamping times.
High precision: suitable for precision parts processing.
Strong adaptability: can process a variety of materials and complex
shapes.
High degree of automation: reduce manual intervention and improve
efficiency.
Application
Aerospace: processing engines, fuselage structural parts, etc.
Automobile manufacturing: production of engine cylinders, gearbox
housings, etc.
Mold manufacturing: manufacturing injection molds, die-casting
molds, etc.
Energy industry: processing gas turbines, nuclear power equipment,
etc.
Shipbuilding: manufacturing engines, propulsion systems, etc.
Horizontal machining center is an efficient and precise CNC machine tool suitable for processing large and complex parts, and is widely used in many industries.
Item | Unit | Details |
X/Y/Z axis travel | mm | 1800/1600/1100 |
Spindle center to worktable | mm | 180-1600 |
Spindle end face to worktable center | mm | 400-1500 |
Turntable area | mm | 1300×1300 |
Turntable indexing (optional) | ° | 90°—1°—0.001° |
Turntable positioning accuracy | " | ±20" |
Repeat positioning accuracy | " | ±6" |
Milling spindle | BT | BT50 |
U-axis Rotary disk speed | r/min | 0-60 |
Milling spindle speed | r/min | 0-750r/min |
U-axis flat disk diameter | mm | φ1000 |
Spindle transmission method | - | Gear drive |
Guide rail type | - | Dual rectangular guide rails |
Tool magazine (optional) | hold | 10 tool positions—24 tool magazines in chamber type—24 tool magazines in disc type |
CNC system (optional) | - | Guangshu—Kandy—New Generation |
Servo motor X/Y/Z/B | Nm | 30/30/30/18 |
Spindle servo motor | KW | 22KW |
Protection type | - | None—semi-protection—full protection |
Machine tool dimensions (length × width × height) | mm | 4000 × 5000 × 4000 |
Machine tool weight | KG | About 25000KG |

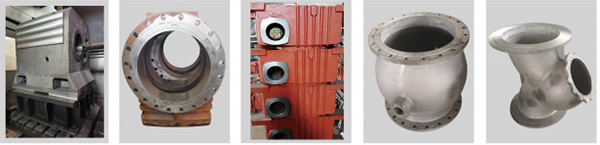

Processed Products
![]() |
